RoboDot

Novel Referencing Solution

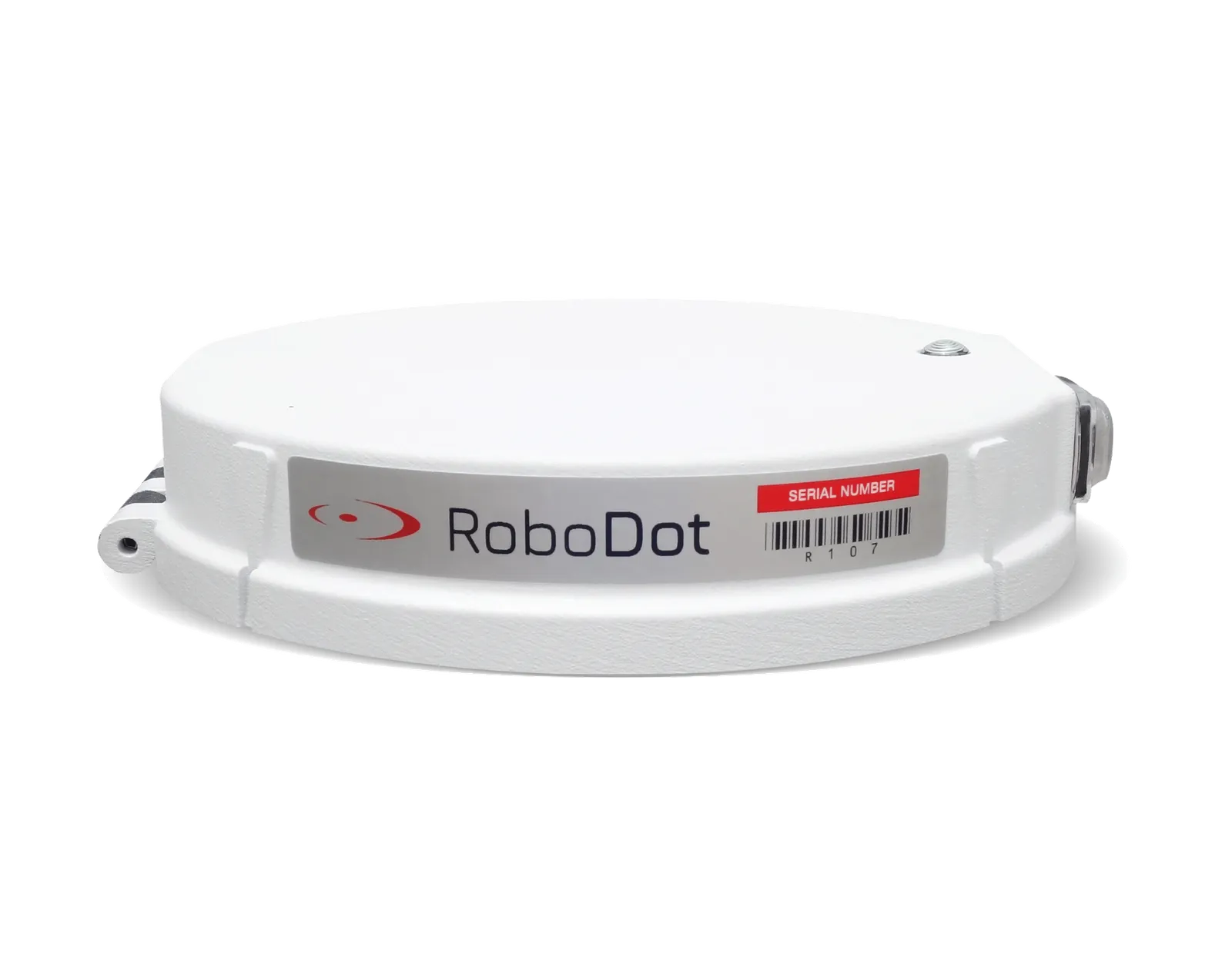

RoboDot RTK GPS receiver makes precision measurement accessible with a simple and affordable design. There are multiple ways to use it in mapping, surveying, and navigation applications. It is durable, has a flexible user interface, and has novel features that decrease setup time.

Multi Use

Use it as an RTK GPS Base station and send corrections over WiFi with NTRIP, LoRa Radio, or directly via USB. RoboDot also supports data logging for PPP workflows with online processors like OPUS. Alternatively, RoboDot operates as a smart ground control point in photogrammetry applications.  RTK Rover mode is also supported through NTRIP connections over the internet or via built-in LoRa radio.

Durable

Robust, and backed by our 12-month manufacturer warranty, RoboDot is equipped to handle real-world conditions.  Its IP67 enclosure blocks dust and water ingress to a depth of 1-meter.

Efficient

With runtimes over 10 hrs per charge, you can have confidence in RoboDot through the workday. When longer observation times are required, an external USB power source can provide nonstop operation.

Unique Shape

The RoboDot has a unique shape that minimizes setup time.  The built-in locating tool and centering reference marks enable speedy deployment over a nail, vertex, or painted control marker. Traditional tripod mounting is also supported, but when placed directly on the ground, RoboDot serves as a ground control point in photogrammetry applications. Its standard dimensions, .5ft by .1ft provide a scale during the post-processing with photogrammetry software.

Connectivity

RoboDot connects -  as a Wifi access point and station.  That makes any rover with NTRIP capability compatible with RoboDot base stations.  What's more, RoboDot can be controlled with any browser-enabled device - iPhone, Android, PC, Mac, Linux, and even DJI drone controllers. Optionally RoboDot can be ordered with 915mhz Lora Radios for long-range communication between base and rover.

RoboDot is easy to interface

RTK GPS Receiver

Features

RoboDot GNSS Frequencies

GNSS Frequencies

L1C/A, L2C, L1OF, L2OF, E1B/C, E5b, B1I, B2I

RoboDot Storage

Logging Memory

16Gb

RoboDot UI Icon

User Interface

Web App

Robota Goose autopilot updates over the air

Updates

Wireless

Robota Wireless RoboDot

Wireless Communication

Optional - 915 MHz Lora/LoraWAN

RoboDot Wired Coms

Communication Port

USB Type C

RoboDot Wifi Icon

Wireless Communication

2.4 GHz WIFI AP and Station

Robota PPK Icon

GNSS

PPK Precision

Robota Trigger

External Trigger

Version 2 - Input Trigger Pin, 3v TTL

RoboDot Temperature Range

Operating Temp

-10 to 65  ºC

RoboDot Size Icon

Size

.5 x .1 ft (15.24 x 3.04 cm)

Robota RTK Icon

GNSS

RTK Precision

RoboDot Weight Icon

Weight

12 oz (340 gram)

RoboDot Ingress protection

Ingress protection

IP67

RoboDot Runtime Icon

Run Time

10+ hrs

RoboDot Modes

Operating Modes

Base Station, Rover, Logger

RoboDot GNSS Constellations

GNSS Constellations

GPS GLONASS Galileo BeiDou

Robota Power Icon

Charging

USB Type C 5v, 1A

Industries

Drone Mapping for Agronomy and Forestry

Canopy Penetration

Drone Mapping for Construction Engineers

Plan and Verify

Drone Mapping for Environment Protection

Decision Making and Record Keeping

Drone Mapping for Mining and Aggregates

Safe and Productive

Forestry and Agricultural Drone Survey

Efficiency and Inventory

Drone Photogrammetry for Land Surveying and Mapping

Fast and Accurate

Outputs

Robota Cloud Processing

Formatted Position Data

Cloud Processed SPC,UTM,XYZ

RoboDot RTCM output

Correction Data

RTCM3 via USB, 3v TTL, or NTRIP

Robota Time Pulse

Precise Time Pulse

Version 2 - 3v TTL Output Pin

RoboDot Output Files

Observation Data

RINEX .obs, .nav Files

RoboDot PPK/RTK Rover Shot List

Rover Position Data

Shot List File .sht (csv)

RoboDot PPK Output

PPK Position Data

Coordinates File .csv

RoboDot Position Data

Position Data

NMEA over USB or 3v TTL
