Accessing RoboDot UI on DJI Controllers for RTK Setup

It’s common to use the RoboDot RTK GPS Receiver as a base station for DJI drones. One of the major benefits of RoboDot is that it can be controlled without needing any special apps or additional hardware. The RoboDot RTK base station works with any device that has WiFi and a web browser, including iPhone, Android, PC, MAC, Linux, and even DJI drone controllers with a built-in browser.

This direct access makes drone surveying and mapping workflows faster and simpler, helping professionals in industries such as construction, mining, agriculture, and environmental monitoring set up RTK corrections in the field with minimal effort.

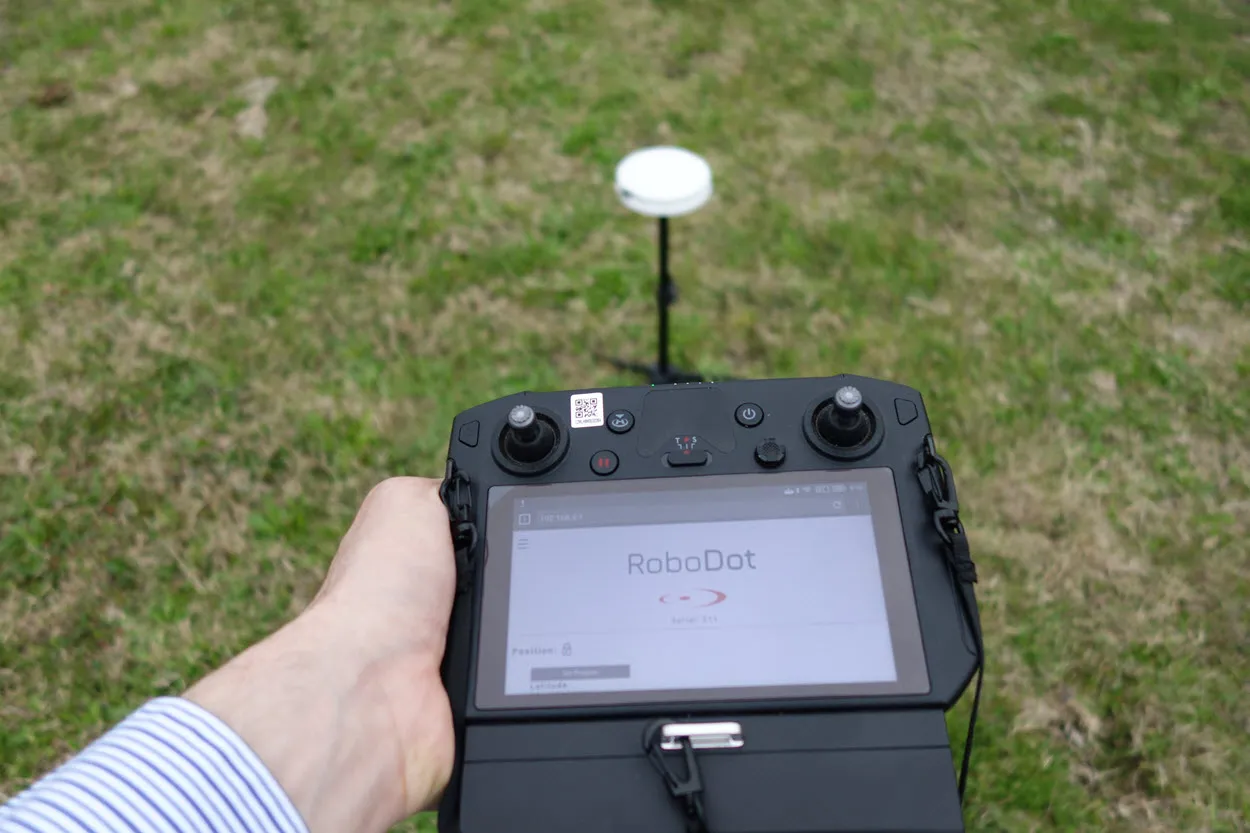

DJI M300 Controller displaying RoboDot User Interface

Viewing RoboDot UI on the DJI M300 Controller

When flying with DJI drone controllers that include a web browser, the setup is straightforward:

1. Connect the DJI controller to RoboDot’s WiFi network.

2. Open the controller’s web browser.

3. Navigate to URL 192.168.4.1(or 192.168.4.2 for touch, or use the IP displayed on the touch screen for accuracy).

The RoboDot User Interface (UI) will display, allowing you to quickly configure the GPS

reference station. This simple connection means DJI drone pilots can use RoboDot as an RTK GPS base station without relying on third-party apps or complex setup steps, making it a reliable commercial drone solution for precision mapping.

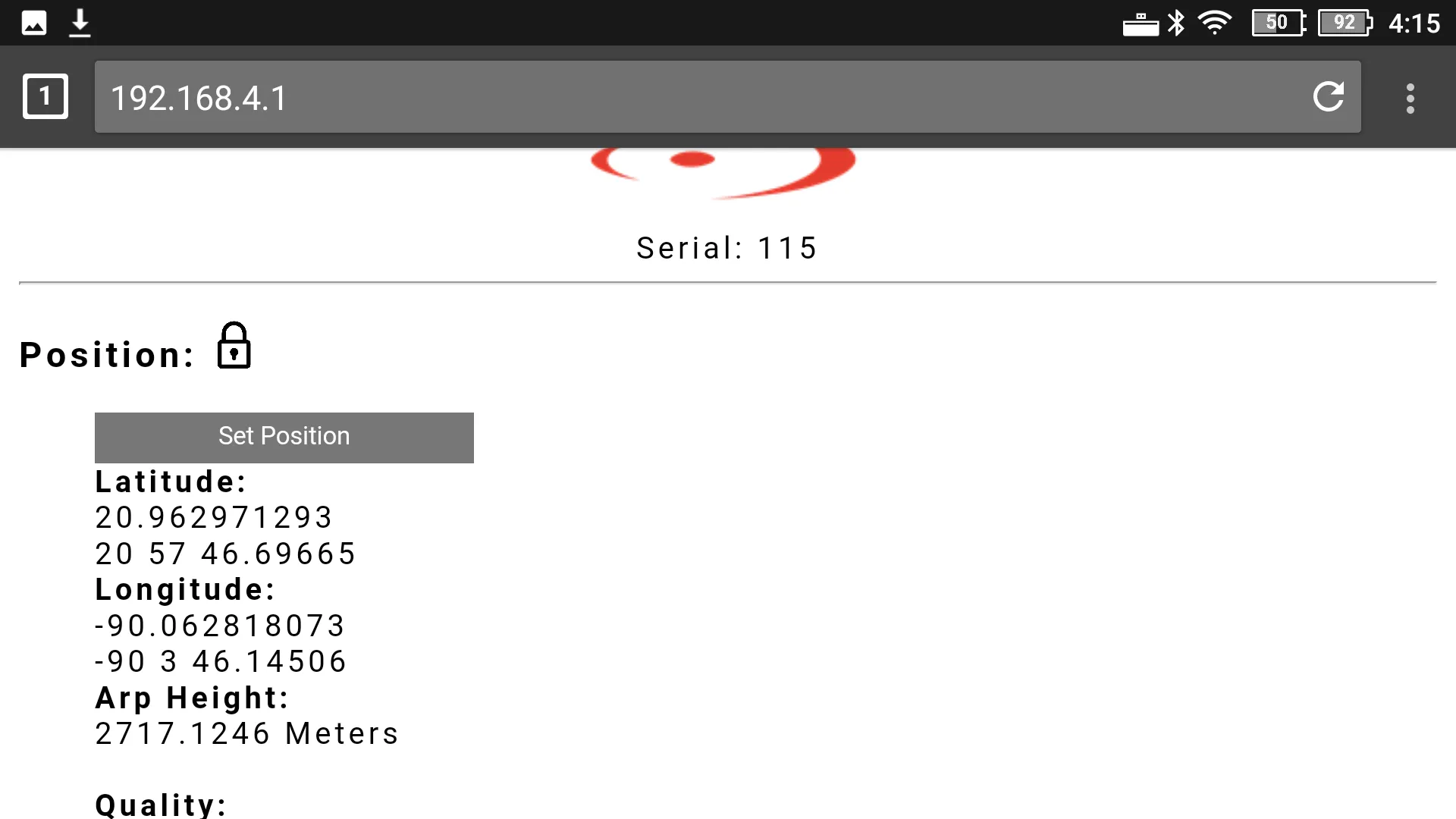

RoboDot RTK Base Mode Showing the Status Page on a DJI M300 Controller

If the connection does not appear immediately, ensure RoboDot is powered on and within range of the controller. Once connected, the DJI controller can also link to RoboDot’s NTRIP server/caster, enabling the drone to receive RTCM3 corrections for centimeter-level accuracy.

Monitoring RoboDot RTK Base Mode on DJI Controller

When RoboDot is running in RTK Base Mode, the Status Page can be viewed directly on the DJI controller. This page provides important insights such as satellite lock, broadcasting status, and correction stream health.

Monitoring the Status Page ensures that RTCM3 corrections are transmitting properly, which is essential for maintaining survey-grade accuracy during operations. For drone pilots working on surveying solutions, mapping projects, or precision inspections, this feature delivers confidence that the RTK workflow is functioning as expected.

By combining RoboDot’s robust RTK capabilities with the convenience of DJI controllers, operators gain a streamlined, reliable, and field-ready drone mapping solution without extra steps or hardware.
